Type 2 Flywheel Housing for Cummins 5.9L 6B 6BT 6BTA
- Secure Payments
- Worldwide Delivery Options
Categories:
Type 2 Flywheel Housing for Cummins 5.9L 6B 6BT 6BTA
Excellent feedback - view what our customers think about us Click here
Free UK mainland delivery
· Parts come with UP TO 180 DAYS WARRANTY on all products purchased
Same day despatch, if ordered before 10 AM
We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex.
If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

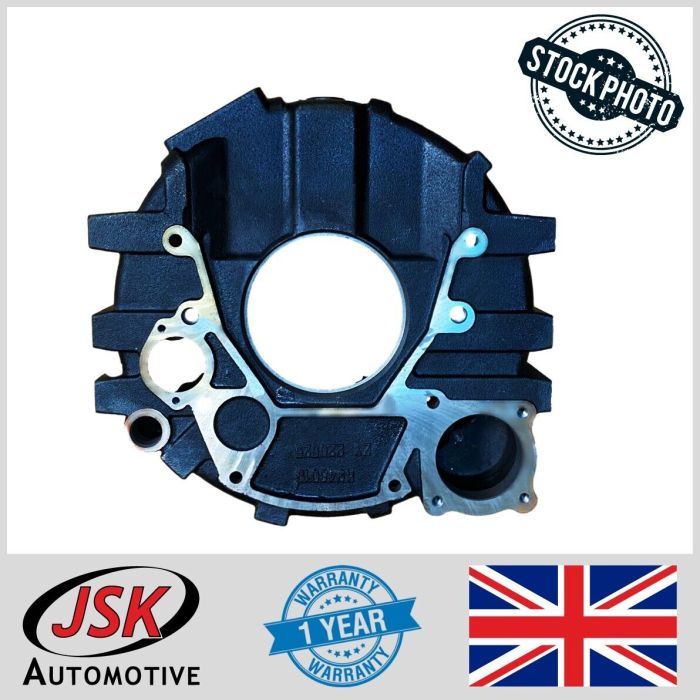

Flywheel Housing
Part number 4080800
Dimensions ( Very Important , as there are a few different "SAE" Numbers
Outer Diameter : 490 mm
Inner Diameter : 448 mm
Number of Holes on the Inner Side: 12
Distance ( center to center ) between the holes : 120 mm
The above sizes may translate to a "SAE2"
You must confirm fitment using part number as there are other options for these engines
If you are unsure please message us before ordering
For Cummins 5.9L engines:
6B, 6BT, 6BTA or 6BTAA (12-Valve Models Only)
As used in:
Bluebird
All American, Conventional , TC/1000, TC/2000, CS Series, APC Series, Q-Bus,
Case IH (Agricultural)
1620, 1640, 1644, 1800, 1822, 1844, 1896, 2022, 2044, 2096, 2144, 2344, 8850, 8880, 8880HP,
5130 Maxxum, 5140 Maxxum, 5150 Maxxum, 5230 ...
Flywheel Housing
Replaces Part number
Dimensions ( Very Important , as there are a few different "SAE" Numbers )
Approx Dimension
Outer Diameter : 450 mm
Inner Diameter : 410 mm
Number of Holes on the Inner Side: 12
Distance ( centre to centre ) between the holes : 425 mm
The above sizes may translate to a "SAE1"
We also have a similar housing, but Larger in size, for the 6BT Engine.
You must confirm fitment using part number as there are other options for these engines
If you are unsure please message us before ordering
For Cummins 5.9L engines:
6B, 6BT, 6BTA or 6BTAA (12-Valve Models Only)
As used in:
Bluebird
All American, Conventional , TC/1000, TC/2000, CS Series, APC Series, Q-Bus,
Case IH (Agricultural)
1620, 1640, 1644, 1800, 1822, 1844, 1896, 2022, 2044, 2096, 2144, 2344, 8850, 8880, 8880HP,
5130 Maxxum, 5140 Maxxum, 5150 Maxxum, 5230 Maxxum, 5240 Maxxum, 5250 Maxxum,
MX100, MX110, MX120, MX135, MX150, MX170
SPX 3150, SPX 3185, SPX 3200, SPX 3210, SPX 3310,
Case CE (Construction)
88B,
621, 621B, 621C, 621D, 680K, 680L, 780C, 780D, 850D, 850E, 850G, 850H, 850K, 855D, 855E, 880D, 888,
1085B, 1085C, 1086B, 1088, 1088 CL, 1150E, 1150G, 1150H, 1155E,
6030, 9030, 9030B,
CX210, CX210LR, CX240, CX240LR, CX290
W12B, W14B, W14C, W1102, W1102D,
Case Power Units
6590, 6590T, 6590TA, 6591T, 6491TA,
DAF
45, 55, F600, F800, F1000
Dennis
Javelin, Dart, Trident
Dodge
Ram 3500, Ram 3500
ERF
ES6, EC6
Ford
Cargo
Ford USA
CF7000, F600, F700, F800, LN7000
FreightLiner
FL50, Fl60, FL70, FL80, FS65, MT35,
Iveco
EuroCargo, Magirus
JCB
426, 426 HT, 426 ZX, 436, 436 HT, 436 ZX, 714, 718, 722
Fastrac 185, Fastrac 3170, Fastrac 3185,
Kawasaki
60K, 60Z, 60Z IV, 60Z IV-2, 65TMV, 65Z V, 65Z IV, 65Z IV-2,
70Z II, 70Z III, 70Z IV, 70Z IV-2, 70Z V,
Komatsu
D40PF, DX20,
FD80-7,
GD530A-1, GD530A-2, GD523, GD623, GD623A,
PC200, PC210, PC220,
WA180-1, WA250, WA250-1H, WA320, WA320-5L,
Leyland
Swift
Oliver/White/Agco White
100, 120, 125 WorkHose, 140, 145 Workhorse,
6124, 6125, 6144, 6145, 6710,
6810, 8310, 8410,
Versatile
256, 276, 4700,
| Brand | Cummins |
| Reference OE/OEM Number | 4080800 |
| Manufacturer Part Number | CMAF4175 |
| EAN | Does not apply |
The part numbers and brands mentioned on this listing description and title are for reference only, they do not imply they are manufactured by the companies mentioned in the listing, unless specified.
If your item price is more than 150 Euro , and you are based in the EU , then import vat will be charged once your package arrives in your countries Customs.
We ship the items using "DDU" (Duties Unpaid ) option, unless you contact us before purchase and come to a shipping agreement.
Buyers from France are requested to get in touch before purchase to avoid any delays in there parcel. Due to Brexit, Border rules have changed and only if a prior agreement is made, we can ship the item much smoothly.
| Brand | Cummins |
| Reference OE/OEM Number | 4080800 |
| Manufacturer Part Number | CMAF4175 |
| EAN | Does not apply |
