Starter Motor for JCB Micro, Micro Plus & Mini CX Excavators & Backhoe Loaders
- Secure Payments
- Worldwide Delivery Options
Categories:
Starter Motor for JCB Micro, Micro Plus & Mini CX Excavators & Backhoe Loaders
12 month warranty on all our products
Excellent feedback - view what our customers think about us Click here
Free UK mainland delivery
Same day despatch, if ordered before 1:30 PM

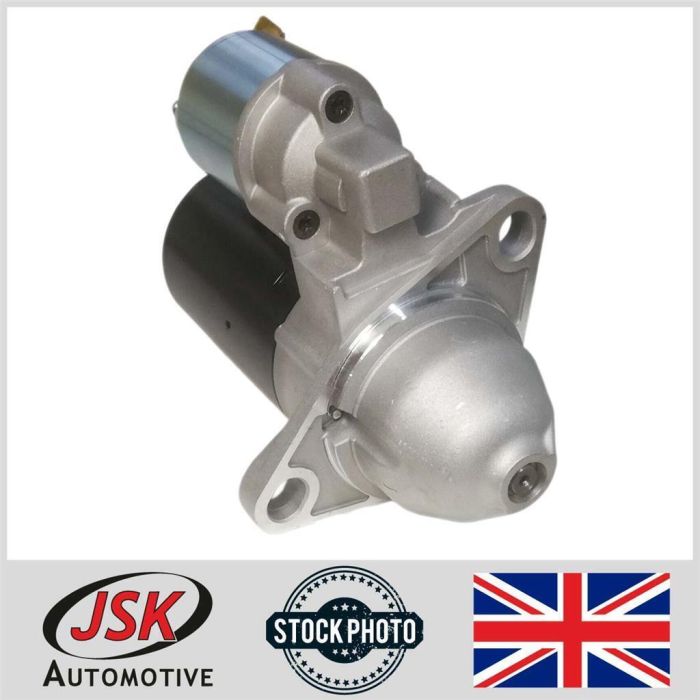

12-Volt, 1.1KW Starter Motor (Clockwise Rotation). With Gear Reduction.
Fits the following JCB's:
Micro, Micro Plus, Mini CX, 16C-1, 1T-2S5, 801, 801.4,
8014, 8014 CTS, 8015, 8016, 8016 CTS, 8016 Super, 8017, 8018, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8020, 8020 CTS
Dimensions:
9-Tooth
Length (not including bendix housing) 152mm
Length (including bendix housing) 211.5mm
Mounting Hole Diameters 11.5mm x 15mm (oval)
Flange Diameter 74mm
Pinion Rest Position 20mm
Related OEM part numbers:
Bosch 0001107078, 0001108181, 0986022480, F032CS0737,
JCB 714/36700, 333/D4934, 02/630500,
Lucas LRS02328, LRS01321, LRS02412, LRS03810,
Perkins U5MK8259, 185086610, 185086620, 185086321,
Shibaura SBA185086610, SBA185086111, SBA185086320, SBA185086620, SBA185086321,
Fits Perkins ...
12-Volt, 1.1KW Starter Motor (Clockwise Rotation). With Gear Reduction.
Fits the following JCB's:
Micro, Micro Plus, Mini CX, 16C-1, 1T-2S5, 801, 801.4,
8014, 8014 CTS, 8015, 8016, 8016 CTS, 8016 Super, 8017, 8018, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8020, 8020 CTS
Dimensions:
9-Tooth
Length (not including bendix housing) 152mm
Length (including bendix housing) 211.5mm
Mounting Hole Diameters 11.5mm x 15mm (oval)
Flange Diameter 74mm
Pinion Rest Position 20mm
Related OEM part numbers:
Bosch 0001107078, 0001108181, 0986022480, F032CS0737,
JCB 714/36700, 333/D4934, 02/630500,
Lucas LRS02328, LRS01321, LRS02412, LRS03810,
Perkins U5MK8259, 185086610, 185086620, 185086321,
Shibaura SBA185086610, SBA185086111, SBA185086320, SBA185086620, SBA185086321,
Fits Perkins Engines:
103-07, 103-09, 103-10, 103-13, 103-15,
104-19, 104-22,
403D-11, 403C-11, 403F-11,
Can be used to replace longer starter motors with same mounting points and tooth arrangement.
Please pay particular attention to the mounting points and pin arrangement at the rear of the solenoid.
Many of the engines and models listed above have multiple options.
If you are at all unsure please message us with your vehicle details.
| Unit Quantity | 1 |
| Type | Starter Motor |
| Manufacturer Part Number | PKAF2421 |
| Unit Type | Unit |
| Brand | JSK |
| EAN | Does not apply |
| OEM Reference Number | LRS01321, 333/D4934, 714/36700, 02/630500 |
The part numbers and brands mentioned on this listing description and title are for reference only, they do not imply they are manufactured by the companies mentioned in the listing, unless specified.
