Pistons, Pins & Rings Set STD for 69.6mm Bore Vauxhall 1.3 CDTI Fiat 1.3 Diesel
£127.49
- Secure Payments
- Worldwide Delivery Options
Categories:
Pistons, Pins & Rings Set STD for 69.6mm Bore Vauxhall 1.3 CDTI Fiat 1.3 Diesel
All Items sold on come with a 30 day money back Gurantee !
Excellent feedback - view what our customers think about us Click here
Free UK mainland delivery
Same day despatch, if ordered before 1:30 PM
We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex.
If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

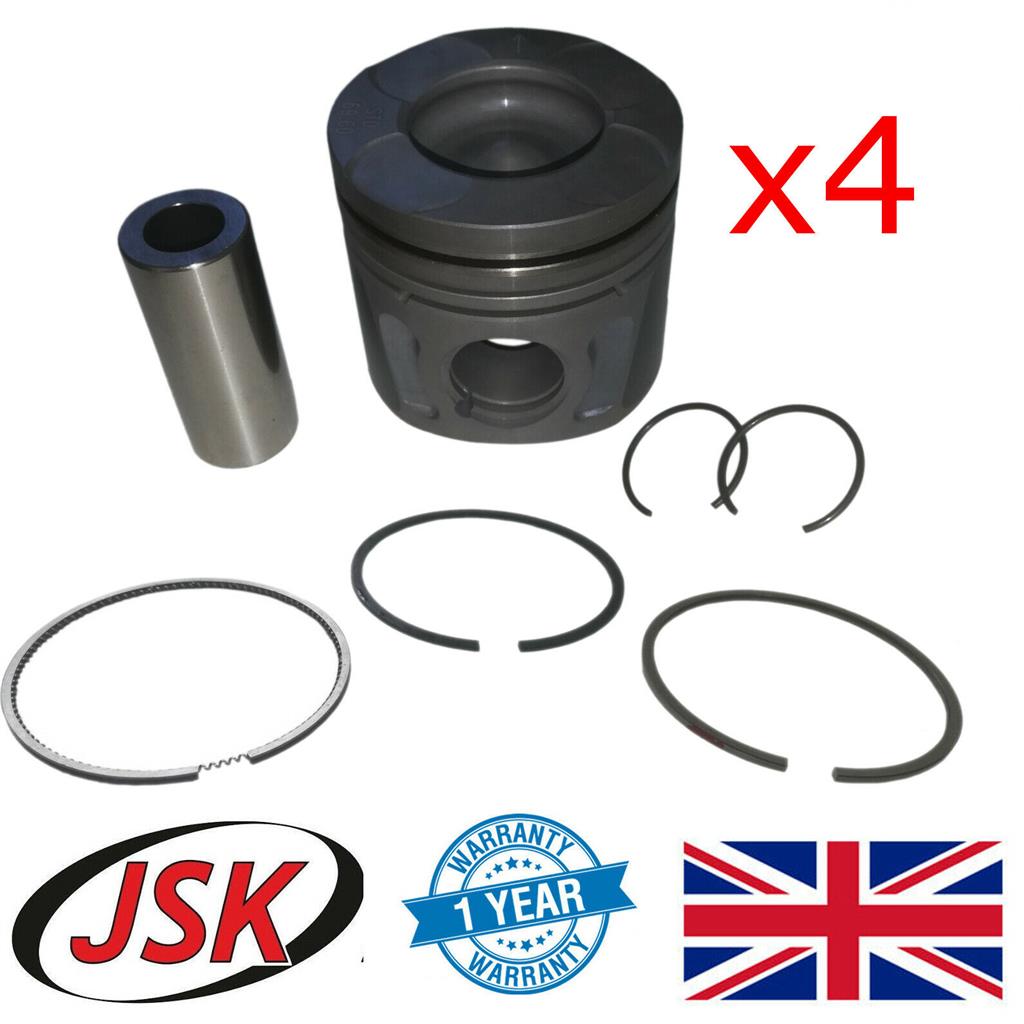

4pc Pistons with 4pc Pins, 8pc Circlips 12pc Rings
STD Size for 69.6mm Bore
Piston Height 62mm
Piston Recess Depth 12.4mm
Piston Recess Diameter 38mm
Pin Diameter 23mm
Pin Length 56.7mm
Ring Thicknesses 2mm -1.5mm - 2mm
You must use these dimensions or a part number to confirm fitment, there is also a 1.5-1.5-2.0mm piston
For 1.3 Diesel Engines in Fiat, Vauxhall, Suzuki Alfa Romeo
Pistons replaces part numbers:
Fiat / Alfa Romeo 55197996, 55197998, 71738447
Vauxhall / Opel 623534, 623587, 93184171, 93192658
Kolbenschmidt 40659600
Nural 87-425600-00
Piston Rings replace part numbers:
Fiat / Alfa Romeo 71752645, 71729503,
Vauxhall / Opel 93177291, 630130, 630365,
Goetze 08-425600-00
Kolbenschmidt 800056210000
Mahle 011RS001000N0
4pc Pistons with 4pc Pins, 8pc Circlips & 12pc Rings
STD Size for 69.6mm Bore
Piston Height 62mm
Piston Recess Depth 12.4mm
Piston Recess Diameter 38mm
Pin Diameter 23mm
Pin Length 56.7mm
Ring Thicknesses 2mm -1.5mm - 2mm
You must use these dimensions or a part number to confirm fitment, there is also a 1.5-1.5-2.0mm piston
For 1.3 Diesel Engines in Fiat, Vauxhall, Suzuki & Alfa Romeo
Pistons replaces part numbers:
Fiat / Alfa Romeo 55197996, 55197998, 71738447
Vauxhall / Opel 623534, 623587, 93184171, 93192658
Kolbenschmidt 40659600
Nural 87-425600-00
Piston Rings replace part numbers:
Fiat / Alfa Romeo 71752645, 71729503,
Vauxhall / Opel 93177291, 630130, 630365,
Goetze 08-425600-00
Kolbenschmidt 800056210000
Mahle 011RS001000N0
| Manufacturer Part Number | FIAF9186 |
| Reference OE/OEM Number | 71752645, 71729503 |
| Brand | JSK |
| Manufacturer Part Number | FIAF9186 |
| Reference OE/OEM Number | 71752645, 71729503 |
| Brand | JSK |
