Piston with Gudgeon Pin & Rings for Perkins 1004.4 & 1006.6 Non Turbo aka AA YA
£54.99
- Secure Payments
- Worldwide Delivery Options
Categories:
Piston with Gudgeon Pin & Rings for Perkins 1004.4 & 1006.6 Non Turbo aka AA YA
All Items sold on Ebay come with a 30 day money back Gurantee !
Excellent feedback - view what our customers think about us Click here
Free UK mainland delivery
Same day despatch, if ordered before 1:30 PM
We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex.
If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

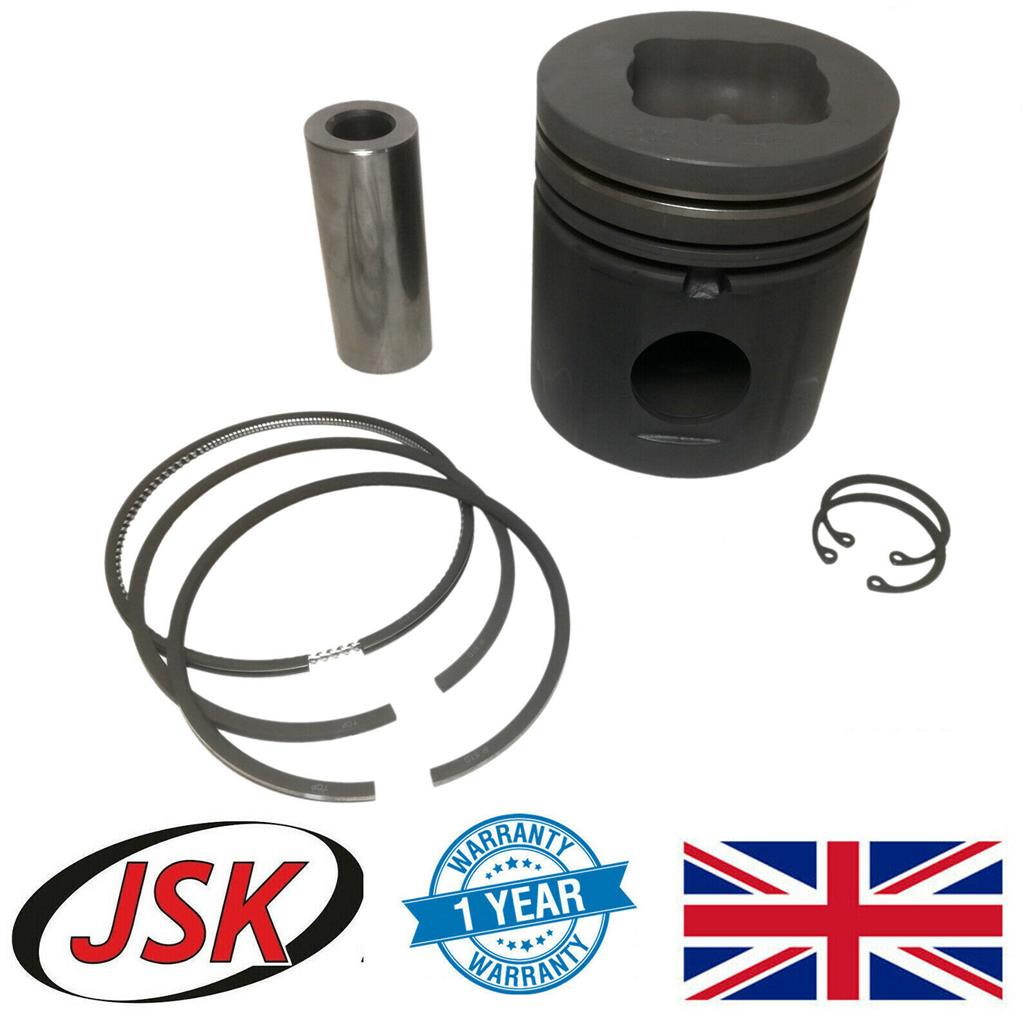

Single Piston with Pin, Two Circlips & Three Rings
For 100mm Bore Diameter
Piston replaces part numbers:
Caterpillar 135-0264,
JCB 02/200849, 02/200904,
Massey Ferguson 3637035M91, 3637662M91, 3638989M91, 3639436M1, 3641024M91, 3641806M91, 4222706M91, 4222706Z91,
Perkins U5LL0015, U5LL0008, U5LL0003, U5LP0024, U5LL0006, 3135J142, 3135J162, 3135J216
Dimensions (approx):
Height 108mm
Diameter 99.7mm
Pin Diameter 34.92mm
Compression Height 70.0mm
Alcove Depth 20.1mm
Alcove diameter (corner to corner) 65.7mm
Alcove diameter (edge to edge) 55.3mm
For Perkins Phase Engines (Non Turbo Only):
1004G, 1004.4 & 1006.6 (aka AA, AG & YA)
As used in:
JCB
3D,
407B, 408B, 409B, 410, 425
525, 527, 530, 532, 537, 540
712, 926, 930,
185, 185 HF, 1105, 1105 HF,
JCB Fastrac
125, 1115
Landini
Legend 105, Legend 115,
Manitou
MLT 524, MLT 526, MLT 527, MLT 626, MLT 626 (5.80), MLT 628, MLT 628 MU, MLT 632, MLT 632 MU, MLT 725, MLT 728, MLT 728 MU,
MT 727, MT 728-2, MT 728-4, MT 928-4, MT 930 CP, MT 940 L, MT 1230 SCP, MT 1233 S, MT 1240 L, MT 1337 SL,
MVT 1130 L, MVT 1130 LS, MVT 1135 L, MVT 1230 SL, MVT 660, MVT 727, MVT 730, MVT 930 L, MVT 935,
Massey Ferguson
271, 396, 399, 465,
3075, 3085, 3095, 3115, 3120, 3120T, 3125, 3140, 3330,
4260, 4270, 4325, 4325 LPF, 4335, 4360,
5320, 5365,
6150, 6160, 6170, 6260,
8925, 8926, 8937, 8939,
| Manufacturer Part Number | U5LL0015, U5LL0008, U5LL0003, U5LP0024, U5LL0006 |
| Brand | JSK |
| EAN | Does not apply |
As per the new VAT reforms 2021 , Orders of value less than 150 Euros , will not incur additional charges upon arrival of goods in the EU country. This is because we use Ebay's IOSS (Import One Stop Shop ) number while sending parcels to the EU.
| Manufacturer Part Number | U5LL0015, U5LL0008, U5LL0003, U5LP0024, U5LL0006 |
| Brand | JSK |
| EAN | Does not apply |
