87mm Direct Inj Piston and Ring Kit for Kubota V2203M V2403 D1703 2.5mm 2mm 5mm

In stock

As low as £0.00

£0.00

Summary
    SKU : KBAF9382UK
    • Secure Payments
    • Worldwide Delivery Options

    87mm Direct Inj Piston and Ring Kit for Kubota V2203M V2403 D1703 2.5mm 2mm 5mm

    All Items sold on Ebay come with a 30 day money back Gurantee !

    Excellent feedback - view what our customers think about us Click here

    Free UK mainland delivery

    Same day despatch, if ordered before 1:30 PM

    We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex.

    If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

    Piston 87 mm and 3pc Piston Ring Set Suitable for 1 Cylinder STD Size Consists of: Piston Width: 87.0 mm Overall Length: 80.0 mm Rings Top Ring : 2 mm Scraper Center Ring : 2.5 mm Oil (bottom) Ring : 3 mm Please confirm fitment by dimensions and engine type Compatible with following Kubota engines: V2203M, V2203, V2203MDI, V2203E, V2203EB, V2203T-EB, V2203-M-DI-E2B, V2203-M-DI-E2B-BC-1, V2203M-DI-E, V2203M-DI V2203 Models: GL417, GL418, GL467, KL37Z, KL38, KL40Z, KL41, KL44Z, KL380, KL385, KL410, KL415, KL3950, KL4350, L4200 V2403 Models: KL46, KL48Z, KL50, KL53Z, KL58Z, KL460, KL465, KL500, KL505, KL550, KL4750, KL5150, KL5550, MX5000, MX5000SU D1703 Models FT28, FT30, GL33, GL337, GL338, KL26R-PC, ...

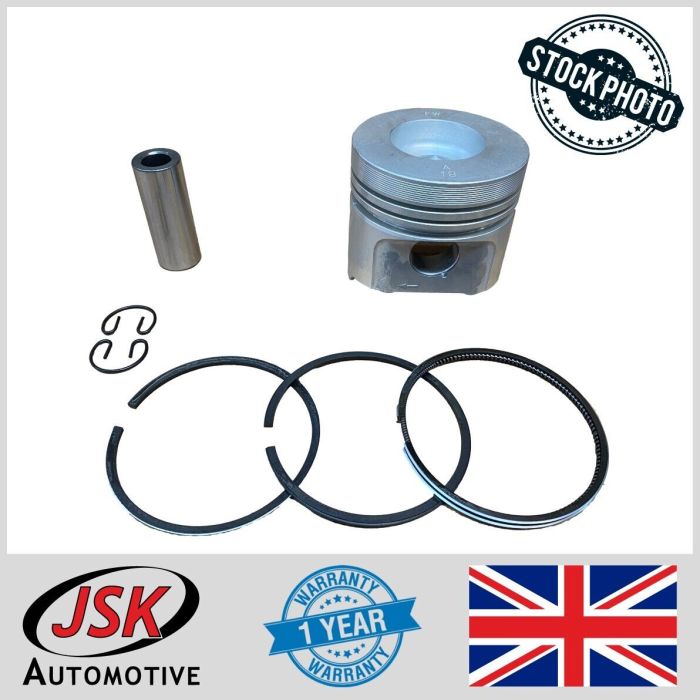

    Piston 87 mm and
    3pc Piston Ring Set - STD Size

    For V2203 Kubota [Direct Injection (Later models)]

    Consists of:

    Piston

    Width: 87.0 mm
    Overall Length: 80.0 mm

    Rings

    Top Ring :  2.5 mm
    Scraper Center Ring : 2.0 mm
    Oil (bottom) Ring : 5 mm


    Please confirm fitment by dimensions and engine type

    If yours is the older type engine (indirect injection) ,
    those pistons and rings are different
    and they are also available in a separate listing


    Compatible with following Kubota engines:

    V2203M, V2203, V2203MDI, V2203E,
    V2203EB, V2203T-EB, V2203-M-DI-E2B,
    V2203-M-DI-E2B-BC-1, V2203M-DI-E, V2203M-DI

    V2203 Models:

    GL417,  GL418,  GL467,  KL37Z,
    KL38,  KL40Z,  KL41,  KL44Z,
    KL380,  KL385,  KL410,  KL415,
    KL3950,  KL4350,  L4200

    V2403 Models:

    KL46,  KL48Z,  KL50,  KL53Z,
    KL58Z,  KL460,  KL465,  KL500,
    KL505, KL550,  KL4750,  KL5150,
    KL5550,  MX5000,  MX5000SU

    D1703 Models

    FT28,  FT30,  GL33,  GL337,
    GL338,  KL26R-PC,  KL27R,  KL28,
    KL28R-PC,  KL31,  KL265,  KL280,
    KL285,  KL310,  KL2750,  KL2850-PC,
    KT285,  KT305,  L3300,  L3430

    Also Suitable for Bobcats
    & Many More Other Models




    Brand Entek
    Manufacturer Part Number KBAF4174
    Piston Diameter 87 mm
    EAN Does not apply
    The part numbers and brands mentioned on this listing description and title are for reference only, they do not imply they are manufactured by the companies mentioned in the listing, unless specified.
    As per the new VAT reforms 2021 , Orders of value less than 150 Euros , will not incur additional charges upon arrival of goods in the EU country. This is because we use Ebay's IOSS (Import One Stop Shop ) number while sending parcels to the EU.



    Brand Entek
    Manufacturer Part Number KBAF4174
    Piston Diameter 87 mm
    EAN Does not apply
