204DTD 4pc Piston with Rings for LR 2.0 D Discovery Sport V Evoque Velar
£176.24
- Secure Payments
- Worldwide Delivery Options
Categories:
204DTD 4pc Piston with Rings for LR 2.0 D Discovery Sport V Evoque Velar
All Items sold on Ebay come with a 30 day money back Gurantee !
Excellent feedback - view what our customers think about us Click here
Free UK mainland delivery
Same day despatch, if ordered before 1:30 PM
We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex.
If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

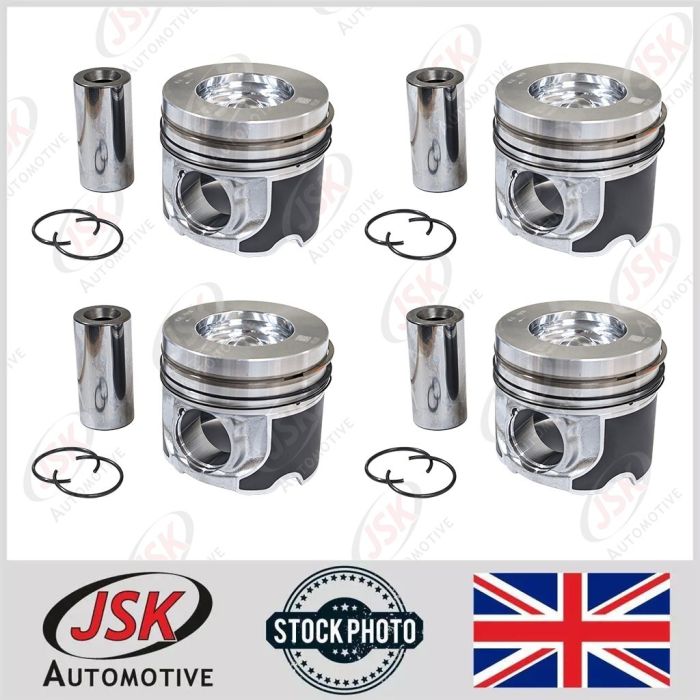

204DTD 4pc Piston with Rings Inside
for LR 2.0 D Discovery Sport V Evoque Velar
For 204DTD Engines
(Single Turbo)
Please review the images / compatibilty to ensure you are ordering the correct part!
Replaces OEM Part Number-
LR873156, 083155, G4D3-6110-BB, G4D3-6K109-BB
Item Specifics-
Piston:
Length: 73.5 mm
Bore Ø: 83 mm
Bolt Ø: 32 mm
Compression Height: 47 mm
Recess Diameter: 49 mm
Bolt Length: 64 mm
Recess Depth 1: -16 mm
Standard Size [STD]
Piston Ring:
Bore Ø: 83 mm
Bolt Ø: 32 mm
Compression Height: 47 mm
Recess Diameter: 49 mm
Bolt Length: 64 mm
Recess Depth 1: -16 mm
Standard Size [STD]
Piston Ring:
Piston Bore Size: 83 mm
Top Ring: 1.75 mm
Scraper Centre Ring: 1.5 mm
Oil (Bottom) Ring: 1.5 mm
Fits the Following Vehicles (see compatibility table for complete list)
Jaguar-
Jaguar-
E-Pace (X540) 2.0D
F-Pace (X761) 2.0 TD4
XE (X760) 2.0D
F-Pace (X761) 2.0 TD4
XE (X760) 2.0D
XF (X260) 2.0D
Land Rover-
Range Rover (L560) 2.0D D240
Range Rover Evoque (L538) 2.0D
Discovery (L462) 2.0 SD4
Defender (L663) 2.0 D200 and D240
Land Rover-
Range Rover (L560) 2.0D D240
Range Rover Evoque (L538) 2.0D
Discovery (L462) 2.0 SD4
Defender (L663) 2.0 D200 and D240
| Brand | JSK |
| Manufacturer Part Number | LRAF9688 |
| Reference OE/OEM Number | LR873156, 083155, G4D3-6110-BB, G4D3-6K109-BB |
| Type | Piston with Ring Set for 4 Cylinder |
| Compatible Engine Codes | 204DTD |
As per the new VAT reforms 2021 , Orders of value less than 150 Euros , will not incur additional charges upon arrival of goods in the EU country. This is because we use Ebay's IOSS (Import One Stop Shop ) number while sending parcels to the EU.
| Brand | JSK |
| Manufacturer Part Number | LRAF9688 |
| Reference OE/OEM Number | LR873156, 083155, G4D3-6110-BB, G4D3-6K109-BB |
| Type | Piston with Ring Set for 4 Cylinder |
| Compatible Engine Codes | 204DTD |
