1104C D Type-2 Crankshaft for Perkins 1104D-E44T CAT 3054C-E Massey Ferguson JCB
· Excellent feedback - view what our customers think about us Click here
· Free UK mainland delivery
· Parts come with UP TO 180 DAYS WARRANTY on all products purchased
· Same day despatch, if ordered before 10 AM
· We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex
If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

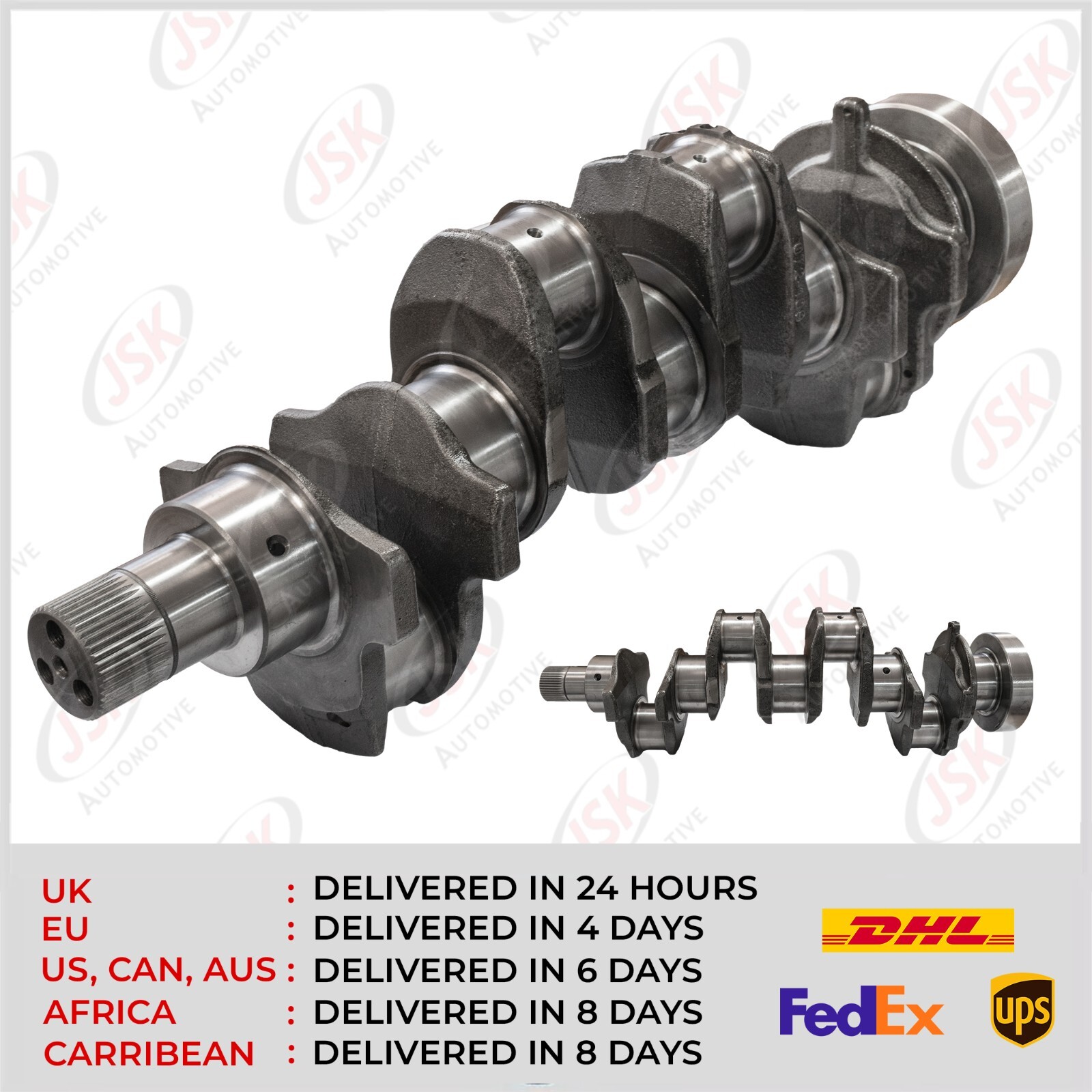

Type-2 1104C/D Crankshaft
for applications featuring Perkins Caterpillar Engines
including Massey Ferguson, JCB Landini
Please review the images / compatibilty to ensure you are ordering the correct part!
!!! There is also a Type-1 Crankshaft that fits other types of 1104 engines !!!
!!! If you require the type 1, search 'PKAF9288' in our store !!!
OEM Part Number Reference:
Perkins: ZZ90222, ZZ90224, ZZ90239, ZZ9f0214, ZZ90223
Caterpillar: 232-7400
JCB: 02/202527, 02/202910, 332/H0256
Massey Ferguson
4225085M91, 4225085R91, 4227020M91, 4227020R91, 4225085E91, 4225086E91
Crankshaft Dimensions:
Main Diameter: 76.18 mm
Con Rod Diameter: 63.48 mm
Total Length: 630~mm
Flywheel Diameter: 133.13 mm
Flywheel Thickness 30.4 mm
Nose End Diameter: 47.4 mm
Nose
Type-2 1104C/D Crankshaft
for applications featuring Perkins & Caterpillar Engines
including Massey Ferguson, JCB & Landini
Please review the images / compatibilty to ensure you are ordering the correct part!
!!! There is also a Type-1 Crankshaft that fits other types of 1104 engines !!!
!!! If you require the type 1, search 'PKAF9288' in our store !!!
OEM Part Number Reference:
Perkins: ZZ90222, ZZ90224, ZZ90239, ZZ9f0214, ZZ90223
Caterpillar: 232-7400
JCB: 02/202527, 02/202910, 332/H0256
Massey Ferguson
4225085M91, 4225085R91, 4227020M91, 4227020R91, 4225085E91, 4225086E91
Crankshaft Dimensions:
Main Diameter: 76.18 mm
Con Rod Diameter: 63.48 mm
Total Length: 630~mm
Flywheel Diameter: 133.13 mm
Flywheel Thickness 30.4 mm
Nose End Diameter: 47.4 mm
Nose End Thickness: 67.15~ mm
For the Following Engine Models
Perkins
1100 Series
NH - 1104D-E44T, NJ - 1104D-E44TA, NL - 1104D-44T, RE - 1104C-44
RG - 1104C-44T, RH - 1104C-E44T, RJ - 1104C-44TA, RK - 1104C-E44TA
NK - 1104D-44, NM - 1104D-44TA
Caterpillar
3054C-E Series
207-1080, 207-1101, 207-1102, 207-1104
207-1108, 207-1126, 207-1149, 207-1151
207-1159, 207-1170, 207-1171, 207-1173
219-7588, 219-7589, 230-3483, 230-5540
241-8593, 241-8594, 241-8596, 244-3104
257-8360, 257-8370
Fits the Following Applications with Perkins Engines
Massey Ferguson
3000 Series
3435, 3445, 3455
5000 Series
5425, 5435, 5445, 5455, 5460
6400 Series
6445, 6455
JCB
Telescopic Handlers
520 LE - AR Build, 530 FS Plus - RJ Build, 524-50, 530S X
540 Super, 540 FS Plus, 530S XL, 530 FS PLUS
527-55, 527-55S, 540S XL, 530 Sway
540-140, 532H, 525-50 LE, 526 LE
540 SWAY, 528-70, 535-125, 540-170 Tier 2
533-105, 526S LE, 525 LE, 535 Telebat
530, 535-140, 535-95, 540
532, 537H, 520-50 LE, 535-60
535S TELEAGRI, 535-95 Sway, 540-170, 535-60 FS
537, 528S, 535SXL TELEAGRI, 535SX TELEAGRI
535-95 FS Plus, 535-60 FS Plus, 535-95 FS, 535-95 FS Super
535 FS Super, 530 Super, 540S X
Wheeled Loaders
411, TM300, 412S, 416 (2000 - 2003) AK
416 (2002 - 2004) RJ, 416 (2004 - 2006) RJ, 408ZX (2004 - 2008) RE, 409ZX (2004 - 2008) RE
407ZX (2004 - 2008) RE Tier 2, 407ZX (2001 - 2004) AS, 411 (2001 - 2004) AK, 412S (2002 - 2004) RJ
412S (2004 - 2006) RJ, 411 (2003 - 2006) RG
Backhoe Loaders
3CX Sideloader, 3CXSM Sideshift, 3CX-4 Centremount, 2CXS
2CXSL, 3CX Sideshift, 3CXSM-4 Centremount, 2CX-SM
3CX-2 Centremount, 2CX-Airmaster, 2CX, 2CXL
3CXSM P/S Sideshift, 42X444 Sideshift, 3CXSM Manual Sideshift, 4C444 Super Centremount
3CX P/S Sideshift, 4C-4T Precision Sideshift, 4C Centremount, 4CN-4WS Precision Sideshift
4CXS4WSSMPC Precision Sideshift, 3CX Manual Sideshift, 3CX Super Sideshift, 4CXSM444 Sideshift
4CN Centremount, 4CN-4T PC, 4CX444 Super Sideshift, 4CXSM444 Super Sideshift
4C-4WS PC, 4CX-4WS PC, 3CXSM444 Super, 3CXSM4TPC
3CN-4 Centremount, 3CX-4T PC, 4CX4WSSMPC, 4CXS-4WSPC
3CX-4WS PC, 4CX444 Centremount, 3CXC-4T PC, 3CXSM 4TPC
4CN444 Super Centremount
Forklifts
RTFL940-2T2, RTFL926-2T2, RTFL926-4T2
RTFL940-4T2, RTFL930-2T2, RTFL930-4T2
Skid Steer Loader
ROBOT 190HF, ROBOT 190T, ROBOT 190THF, ROBOT 190,
ROBOT 1110HF, ROBOT 110THF, ROBOT 1110, ROBOT 1110T
ROBOT 190HF, ROBOT 190T, ROBOT 190THF, ROBOT 190,
ROBOT 1110HF, ROBOT 110THF, ROBOT 1110, ROBOT 1110T
Wheeled Loader
411B LE AK
Landini
Agricultural Tractors
7860, 8860, Powerfarm 75, Powerfarm 85
Powerfarm 95, Powerfarm 105, Ghibli 105, Ghibli 85
Ghibli 95, Mythos 105, Vision 95, Vision 85
Vision 105, Vision 100, Globalfarm 100, Globalfarm 105
Globalfarm 90, Globalfarm 95, Powermondial 100, Powermondial 105
Powermondial 110, Powermondial 115, Powermondial 95
Crawler Tractors
Trekker 75, Trekker 95, Trekker 100, Trekker 105, Trekker 80, Trekker 85, Trekker 90
Orchard Tractors
Rex 100, Rex 80, Rex 90, Rex 105, Rex 75, Rex 85, Rex 95
Vineyard Tractors
Rex 75, Rex 80, Rex 85
Specialized Tractors
Rex 110, Rex 120
Compact Tractors
5-100H, 5-110H, 5-115H, 5-80H, 5-90H
Other
GLOBALFARM 80, POWERFARM 110
TECHNOFARM 75, TECHNOFARM 80, TECHNOFARM 85
| Brand | JSK |
| Reference OE/OEM Number | Caterpillar 232-7400 JCB 02/202527, 02/202910, 332/H0256 Massey Ferguson 4225085M91, 4225085R91, 4227020M91, 4227020R91, 4225085E91, 4225086E91 Perkins ZZ90222, ZZ90224, ZZ90239, ZZ90214, ZZ90223 |
| Manufacturer Part Number | PKAF5038 |
| Total Length | 630~ mm |
| Conrod Diameter | 63.48 mm |
| Main Dimension | 76.18 mm |
| Perkins Engine Codes | ?NH - 1104D-E44T,NJ - 1104D-E44TA,NL - 1104D-44T,RE - 1104C-44 RG - 1104C-44T,RH - 1104C-E44T,RJ - 1104C-44TA,RK - 1104C-E44TA NK - 1104D-44,NM - 1104D-44TA |
| Caterpillar Engine Codes | 207-1080,207-1101,207-1102,207-1104 207-1108,207-1126,207-1149,207-1151 207-1159,207-1170,207-1171,207-1173 219-7588,219-7589,230-3483,230-5540 241-8593,241-8594,241-8596,244-3104 257-8360,257-8370 |
| Nose End Diameter | 47.4 mm |
| JCB Telescopic Handlers | 520 LE - AR Build,530 FS Plus - RJ Build,524-50,530S X 540 Super,540 FS Plus,530S XL,530 FS PLUS 527-55,527-55S,540S XL,530 Sway 540-140,532H,525-50 LE,526 LE 540 SWAY,528-70,535-125,540-170 Tier 2 533-105,526S LE,525 LE,535 Telebat 530,535-140,535-95,540 532,537H,520-50 LE,535-60 535S TELEAGRI,535-95 Sway,540-170,535-60 FS 537,528S,535SXL TELEAGRI,535SX TELEAGRI 535-95 FS Plus,535-60 FS Plus,535-95 FS,535-95 FS Super 535 FS Super,530 Super,540S X |
| JCB Forklifts | RTFL940-2T2,RTFL926-2T2,RTFL926-4T2 RTFL940-4T2,RTFL930-2T2,RTFL930-4T2 |
| JCB Skid Steer Loaders | ROBOT 190HF,ROBOT 190T,ROBOT 190THF,ROBOT 190,ROBOT 1110HF,ROBOT 110THF,ROBOT 1110,ROBOT 1110T ? |
| JCB Backhoe Loaders | 3CX Sideloader,3CXSM Sideshift,3CX-4 Centremount,2CXS 2CXSL,3CX Sideshift,3CXSM-4 Centremount,2CX-SM 3CX-2 Centremount,2CX-Airmaster,2CX,2CXL 3CXSM P/S Sideshift,42X444 Sideshift,3CXSM Manual Sideshift,4C444 Super Centremount 3CX P/S Sideshift,4C-4T Precision Sideshift,4C Centremount,4CN-4WS Precision Sideshift 4CXS4WSSMPC Precision Sideshift,3CX Manual Sideshift,3CX Super Sideshift,4CXSM444 Sideshift 4CN Centremount,4CN-4T PC,4CX444 Super Sideshift,4CXSM444 Super Sideshift 4C-4WS PC,4CX-4WS PC,3CXSM444 Super,3CXSM4TPC 3CN-4 Centremount,3CX-4T PC,4CX4WSSMPC,4CXS-4WSPC 3CX-4WS PC,4CX444 Centremount,3CXC-4T PC,3CXSM 4TPC 4CN444 Super Centremount |
| JCB Wheeled Loaders | 411,TM300,412S,416 (2000 - 2003) AK 416 (2002 - 2004) RJ,416 (2004 - 2006) RJ,408ZX (2004 - 2008) RE,409ZX (2004 - 2008) RE 407ZX (2004 - 2008) RE Tier 2,407ZX (2001 - 2004) AS,411 (2001 - 2004) AK,412S (2002 - 2004) RJ 412S (2004 - 2006) RJ,411 (2003 - 2006) RG |
| Flywheel Side Thickness | 30.4 mm |
| Nose End Thickness | 67.15~ mm |
| Flywheel Side Diameter | 133.13 mm |
| Massey Ferguson Models | ?3000 Series 3435,3445,3455 ?5000 Series 5425,5435,5445,5455,5460 6400 Series 6445,6455 |
The part numbers and brands mentioned on this listing description and title are for reference only, they do not imply they are manufactured by the companies mentioned in the listing, unless specified.
If your item price is more than 150 Euro , and you are based in the EU , then import vat will be charged once your package arrives in your countries Customs.
We ship the items using "DDU" (Duties Unpaid ) option, unless you contact us before purchase and come to a shipping agreement.
Buyers from France are requested to get in touch before purchase to avoid any delays in there parcel. Due to Brexit, Border rules have changed and only if a prior agreement is made, we can ship the item much smoothly.
| Brand | JSK |
| Reference OE/OEM Number | Caterpillar 232-7400 JCB 02/202527, 02/202910, 332/H0256 Massey Ferguson 4225085M91, 4225085R91, 4227020M91, 4227020R91, 4225085E91, 4225086E91 Perkins ZZ90222, ZZ90224, ZZ90239, ZZ90214, ZZ90223 |
| Manufacturer Part Number | PKAF5038 |
| Total Length | 630~ mm |
| Conrod Diameter | 63.48 mm |
| Main Dimension | 76.18 mm |
| Perkins Engine Codes | ?NH - 1104D-E44T,NJ - 1104D-E44TA,NL - 1104D-44T,RE - 1104C-44 RG - 1104C-44T,RH - 1104C-E44T,RJ - 1104C-44TA,RK - 1104C-E44TA NK - 1104D-44,NM - 1104D-44TA |
| Caterpillar Engine Codes | 207-1080,207-1101,207-1102,207-1104 207-1108,207-1126,207-1149,207-1151 207-1159,207-1170,207-1171,207-1173 219-7588,219-7589,230-3483,230-5540 241-8593,241-8594,241-8596,244-3104 257-8360,257-8370 |
| Nose End Diameter | 47.4 mm |
| JCB Telescopic Handlers | 520 LE - AR Build,530 FS Plus - RJ Build,524-50,530S X 540 Super,540 FS Plus,530S XL,530 FS PLUS 527-55,527-55S,540S XL,530 Sway 540-140,532H,525-50 LE,526 LE 540 SWAY,528-70,535-125,540-170 Tier 2 533-105,526S LE,525 LE,535 Telebat 530,535-140,535-95,540 532,537H,520-50 LE,535-60 535S TELEAGRI,535-95 Sway,540-170,535-60 FS 537,528S,535SXL TELEAGRI,535SX TELEAGRI 535-95 FS Plus,535-60 FS Plus,535-95 FS,535-95 FS Super 535 FS Super,530 Super,540S X |
| JCB Forklifts | RTFL940-2T2,RTFL926-2T2,RTFL926-4T2 RTFL940-4T2,RTFL930-2T2,RTFL930-4T2 |
| JCB Skid Steer Loaders | ROBOT 190HF,ROBOT 190T,ROBOT 190THF,ROBOT 190,ROBOT 1110HF,ROBOT 110THF,ROBOT 1110,ROBOT 1110T ? |
| JCB Backhoe Loaders | 3CX Sideloader,3CXSM Sideshift,3CX-4 Centremount,2CXS 2CXSL,3CX Sideshift,3CXSM-4 Centremount,2CX-SM 3CX-2 Centremount,2CX-Airmaster,2CX,2CXL 3CXSM P/S Sideshift,42X444 Sideshift,3CXSM Manual Sideshift,4C444 Super Centremount 3CX P/S Sideshift,4C-4T Precision Sideshift,4C Centremount,4CN-4WS Precision Sideshift 4CXS4WSSMPC Precision Sideshift,3CX Manual Sideshift,3CX Super Sideshift,4CXSM444 Sideshift 4CN Centremount,4CN-4T PC,4CX444 Super Sideshift,4CXSM444 Super Sideshift 4C-4WS PC,4CX-4WS PC,3CXSM444 Super,3CXSM4TPC 3CN-4 Centremount,3CX-4T PC,4CX4WSSMPC,4CXS-4WSPC 3CX-4WS PC,4CX444 Centremount,3CXC-4T PC,3CXSM 4TPC 4CN444 Super Centremount |
| JCB Wheeled Loaders | 411,TM300,412S,416 (2000 - 2003) AK 416 (2002 - 2004) RJ,416 (2004 - 2006) RJ,408ZX (2004 - 2008) RE,409ZX (2004 - 2008) RE 407ZX (2004 - 2008) RE Tier 2,407ZX (2001 - 2004) AS,411 (2001 - 2004) AK,412S (2002 - 2004) RJ 412S (2004 - 2006) RJ,411 (2003 - 2006) RG |
| Flywheel Side Thickness | 30.4 mm |
| Nose End Thickness | 67.15~ mm |
| Flywheel Side Diameter | 133.13 mm |
| Massey Ferguson Models | ?3000 Series 3435,3445,3455 ?5000 Series 5425,5435,5445,5455,5460 6400 Series 6445,6455 |
