100mm Piston + Rings & Pin JCB 3CX 4CX 4C 4CN JS130 410 411 412 414 415 416 ....
£48.76
- Secure Payments
- Worldwide Delivery Options
Categories:
100mm Piston + Rings & Pin JCB 3CX 4CX 4C 4CN JS130 410 411 412 414 415 416 ....
All Items sold on Ebay come with a 30 day money back Gurantee !
Excellent feedback - view what our customers think about us Click here
Free UK mainland delivery
Same day despatch, if ordered before 1:30 PM
We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex.
If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

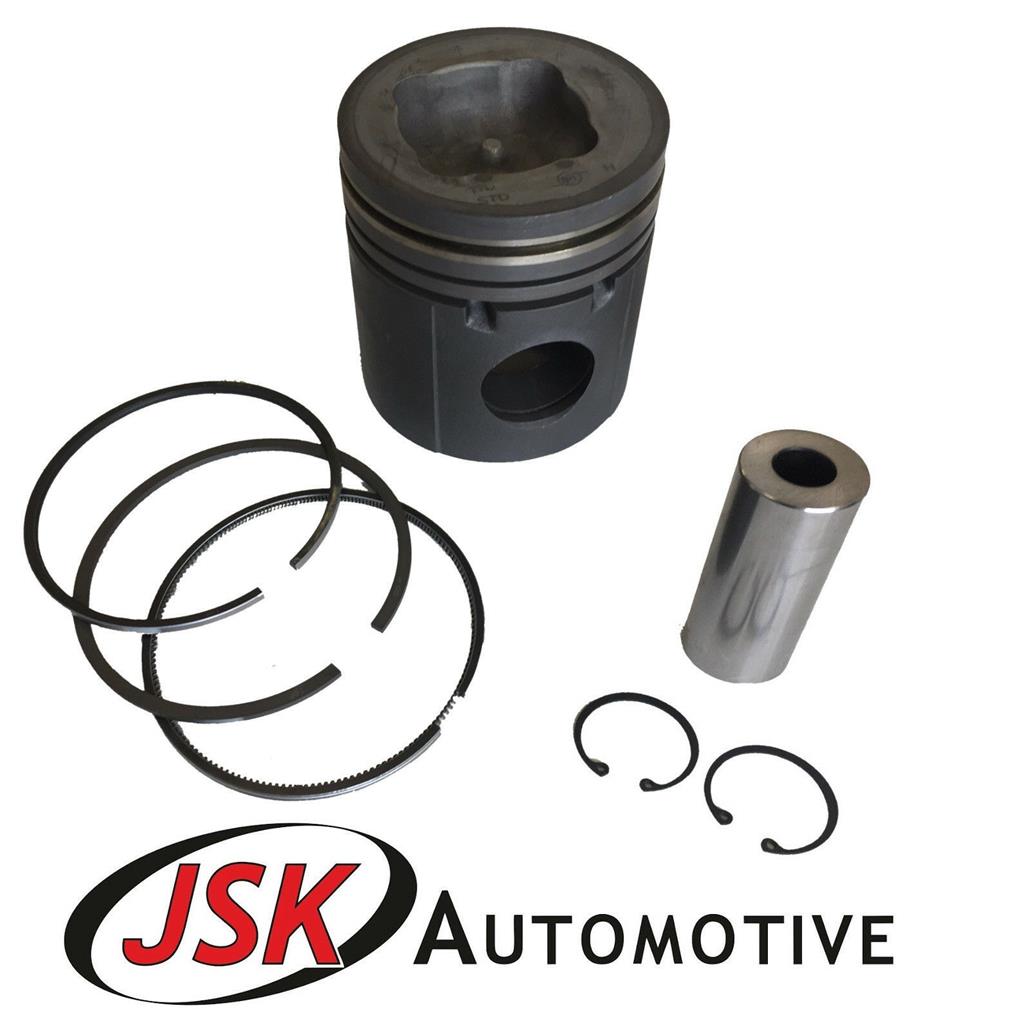

Single Piston with Pin, Rings and Circlips
For Perkins Engines:
1004G, 1004.4T, 1006.6T, 1006.6TW, 135Ti
Please confirm fitment by engine type and dimensions. Model list is a guide only, some models have more than one engine option
Dimensions (approx):
For Bore Diameter 100mm
Height 108mm
Crown Diameter 98mm
Chamber Depth 19mm
Chamber Diameter 76mm
Recess Depth 19.4mm
Recess Diameter 56mm
Pin Diameter 38mm
Pin Length 83mm
Ring Thicknesses 3.0mm 2.5mm 4.0mm
Used in:
JCB:
3CX, 4C, 4CN, 4CX
410, 411, 412, 414, 415 416, 426, 436, 527
520, 525, 526, 527, 530, 532, 535, 537, 540,
TM200, TM270, 409TM
JS130
Plus many other applications
Please confirm fitment by engine type and dimensions. Model list is a guide only, some models have more than one engine option
| Type | Piston |
| Reference OE/OEM Number | U5LL0016, U5LL0014, 3640593M91, 3640597M1, 02/200860 |
| Manufacturer Part Number | PKAF9047 |
| EAN | Does not apply |
| Brand | JSK |
As per the new VAT reforms 2021 , Orders of value less than 150 Euros , will not incur additional charges upon arrival of goods in the EU country. This is because we use Ebay's IOSS (Import One Stop Shop ) number while sending parcels to the EU.
| Type | Piston |
| Reference OE/OEM Number | U5LL0016, U5LL0014, 3640593M91, 3640597M1, 02/200860 |
| Manufacturer Part Number | PKAF9047 |
| EAN | Does not apply |
| Brand | JSK |
