1.1KW Starter Motor for Perkins 103-07 103-09 103-10 103-13 103-15 104-19 104-22
- Secure Payments
- Worldwide Delivery Options
Categories:
1.1KW Starter Motor for Perkins 103-07 103-09 103-10 103-13 103-15 104-19 104-22
Excellent feedback - view what our customers think about us Click here
Free UK mainland delivery
· Parts come with UP TO 180 DAYS WARRANTY on all products purchased
Same day despatch, if ordered before 10 AM
We ship daily to Europe and Rest of the World ! Delivered in 4 days ! with UPS and Fedex.
If you are buying from Germany , Italy or Spain websites, to anywhere in the EU , then we pay the VAT and the item is delivered to your doorstep. Nothing to pay ! If you wish you can buy also on our UK listing but then you are responsible for payment of taxes and duties

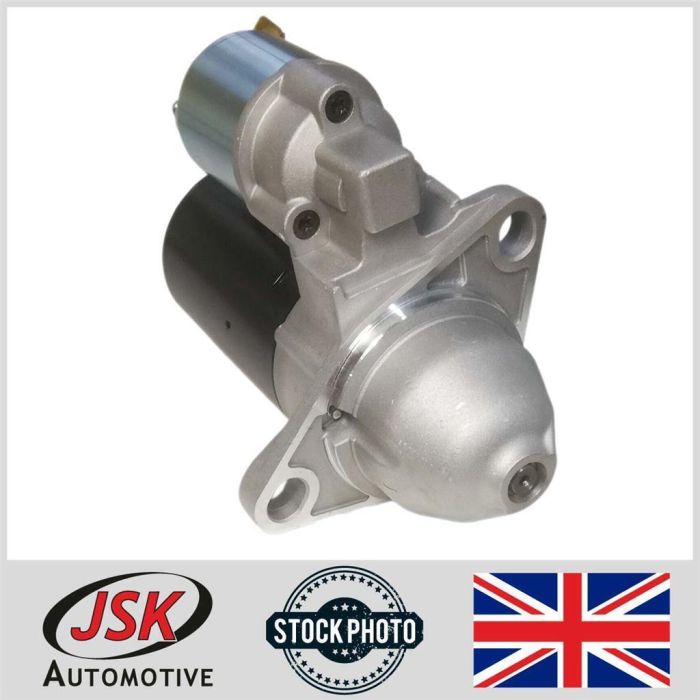

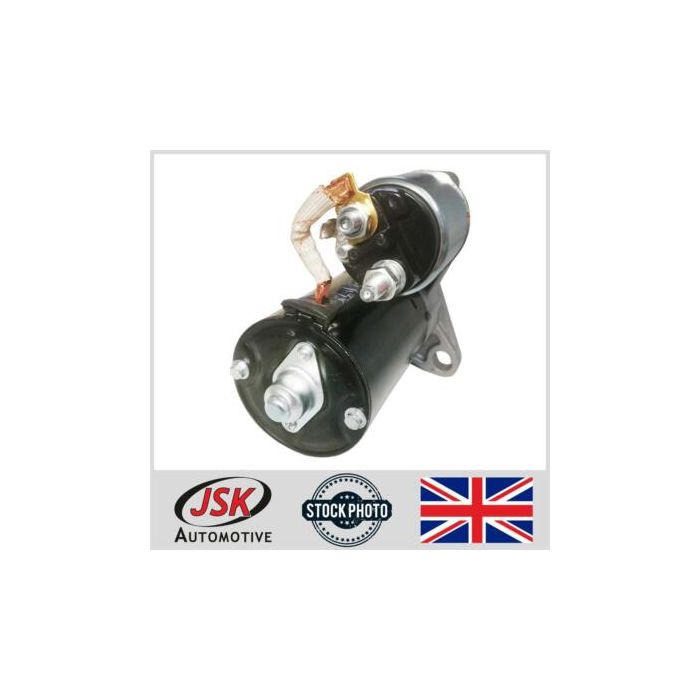

12-Volt, 1.1KW Starter Motor (Clockwise Rotation)
With Gear Reduction
You must confirm fitment using either a part number or the dimensions and picture
Pay particular attention to the mounting points and pin arrangement at the rear of the solenoid
Many of the engines and models listed below have multiple options
If you are at all unsure please message us with your vehicle details
Dimensions:
9-Tooth
Length (not including bendix housing) 152mm
Length (including bendix housing) 211.5mm
Mounting Hole Diameters 11.5mm x 15mm (oval)
Flange Diameter 74mm
Pinion Rest Position 20mm
Center to Center Distance of holes : 110 mm
Can be used to replace longer starter motors with same mounting points and tooth arrangement
Replaces part numbers:
Bosch 0001107078, 0001108181, 0986022480, F032CS0737,
Caterpillar 138-7454, 340-8308,
Delco Remy DRS3703, 668.003.092,
Denso 128000-0100, 128000-0101, 128000-0102,
HC Parts JS737,
Hella 8EA730278001, 730278001,
Hitachi S114-381,
JCB 714/36700, 333/D4934, 02/630500,
Lucas LRS02328, LRS01321, LRS02412, LRS03810,
Magneti Marelli 063521070780,
Perkins U5MK8259, 185086610, 185086620, 185086321,
Prestolite 20513015, PBNS3015,
Shibaura SBA185086610, SBA185086111, SBA185086320, SBA185086620, SBA185086321,
Volvo 3582514, 3801351, 3803584, 8000278, 21302969,
Other STG91228,
Fits Perkins Engines:
103-07, 103-09, 103-10, 103-13, 103-15,
104-19, 104-22,
403D-11, 403C-11, 403F-11,
For Caterpillar Engines:
3003, 3009, 3010, 3011C, 3013C, 3024, C1.1,
For Shibaura Engines:
E673, S723, S753, S773, S773L, J843, N844, N844L,
For Volvo Penta Engines:
D1-30, D2-40, D2-55, D2-75
As used in:
Atlas Copco
404, 604, 804, AB404, AB604, AB804, AB804M
Bell
7250, 7400,
Case IH & CE
15 (Mini Excavator), 16 (Mini Excavator), 28 (Mini Excavator), 31 (Mini Excavator), 35 (Mini Excavator),
CX15, CX16, C28, CX28, CX31, CX35,
D25, D29, D33, D35, D40,
DX22E, DX23, DX25, DX25E, DX26, DX29, DX31, DX33, DX34, DX35, DX40,
Farmall 31, Farmall 35, Farmall 40, Farmall 45, Farmall 45A, Farmall 50, Farmall 55A,
Farmall DX18E, Farmall DX21, Farmall DX24, Farmall DX24E, Farmall DX29, Farmall DX48, Farmall DX55
FAI
212, 222, 320B,
Ford
1120, 1215, 1220, 1310, 1520, 1620, 1715, 1920, 3415,
Gehl
MB145, MB165, MB245, MB345 ,
Goldoni
20DT Idea, 25DT Idea, 26DT Idea, 30DT Idea,
JCB
Micro, Micro Plus, Mini CX,
16C-1, 1T-2S5,
801, 801.4,
8014, 8014 CTS, 8015, 8016, 8016 CTS, 8016 Super, 8017, 8018, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8020, 8020 CTS,
Manitou
4 RM 20 HP, BTI 220, BTI 225, MC 20 HP,
New Holland
1120, 1215, 1220, 1320, 1920,
LS125, LS160, LS170,
LX565,
TC26DA, TC40A, TC40DA, TC45A. TC45DA, TC48DA,
Sisis
Greenstar Mower
Weidemann
912D, 912P, 914D, 914P, 915D, 915P, 919D, 919P
1002 DP, 1015 DP, 1030 DP, 1055 DP, 1060 DP, 1090 DP,
1115 P22, 1130 CX, 1140 CX, 1150 CX, 1160 CC30,
1230 CX30, 1230 P22, 1240 P33, 1250 P33,
1360 P33, 1370 P33, 1370 P48,
1506 P33,
1904 DP,
2002 DP, 2006 P50,
3002 DP, 3006 P50, 3110 DP,
Zeppelin
Z20C, ZKZK32B, ZM4, ZR4,
You must confirm fitment using either a part number or the dimensions and picture
Pay particular attention to the mounting points and pin arrangement at the rear of the solenoid
Many of the engines and models listed above have multiple options
If you are at all unsure please message us with your vehicle details
| Manufacturer Part Number | U5MK8259, 185086610, 185086620, 185086321 |
| Brand | JSK |
| EAN | Does not apply |
The part numbers and brands mentioned on this listing description and title are for reference only, they do not imply they are manufactured by the companies mentioned in the listing, unless specified.
If your item price is more than 150 Euro , and you are based in the EU , then import vat will be charged once your package arrives in your countries Customs.
We ship the items using "DDU" (Duties Unpaid ) option, unless you contact us before purchase and come to a shipping agreement.
Buyers from France are requested to get in touch before purchase to avoid any delays in there parcel. Due to Brexit, Border rules have changed and only if a prior agreement is made, we can ship the item much smoothly.
| Manufacturer Part Number | U5MK8259, 185086610, 185086620, 185086321 |
| Brand | JSK |
| EAN | Does not apply |
